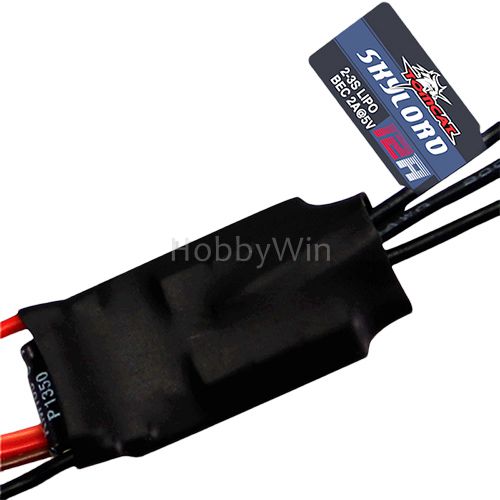

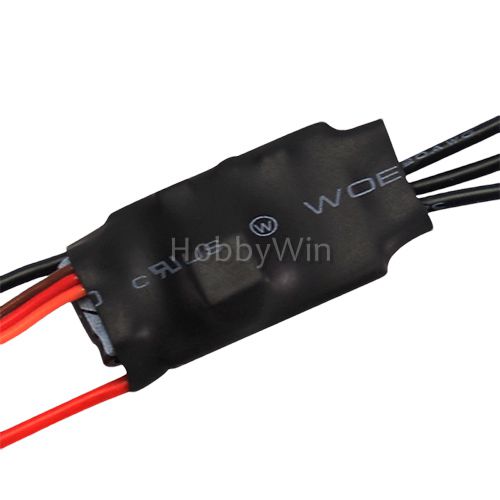

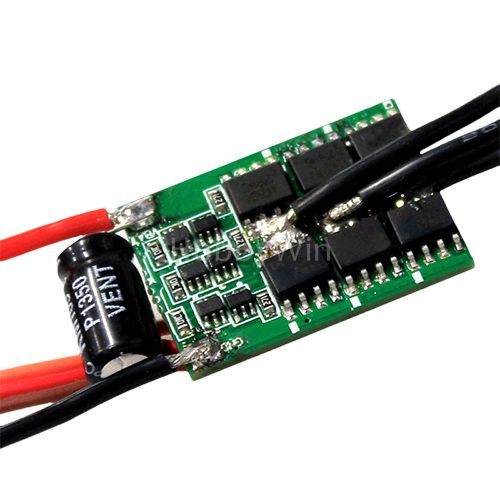

Dynam Skylord ESC 12A Linear BEC 5V 2A

Dynam Skylord ESC 12A Linear BEC 5V 2A
Made By: Dynam
Item No.: SKL012 (Buy-It-Now)

MPN: Skylord-12A
Constant Current: 12A
Burst Current: 15A
BEC Output: Linear 5V/2A
BEC Output Capacity:
5 servos with 2S LiPO
4 servos with 3S LiPO

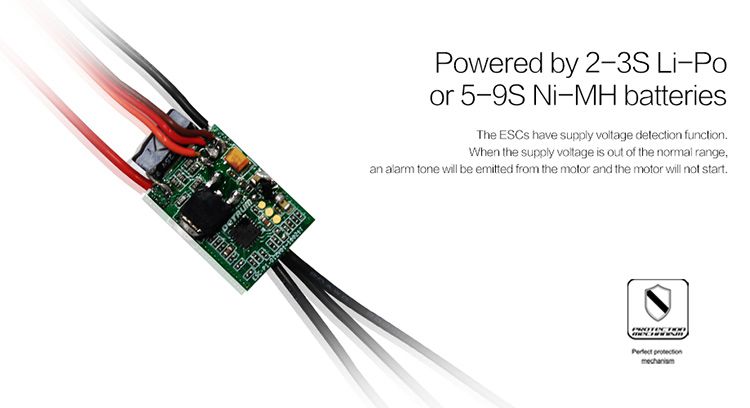

Battery Suggestion:  2~3s LiPO /5~9s NiMH
Size: 38*18*7mm
Weight: 10g
Q'TY: 1P

FEATURES:

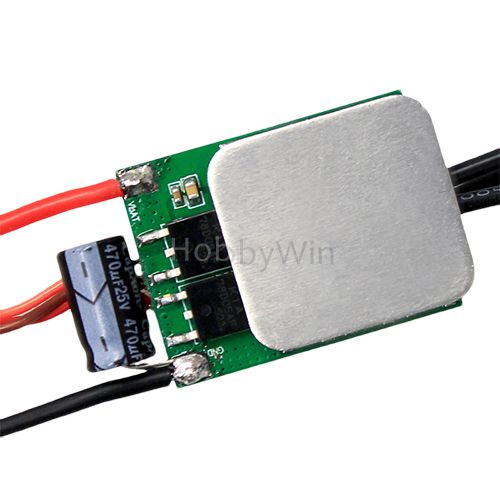

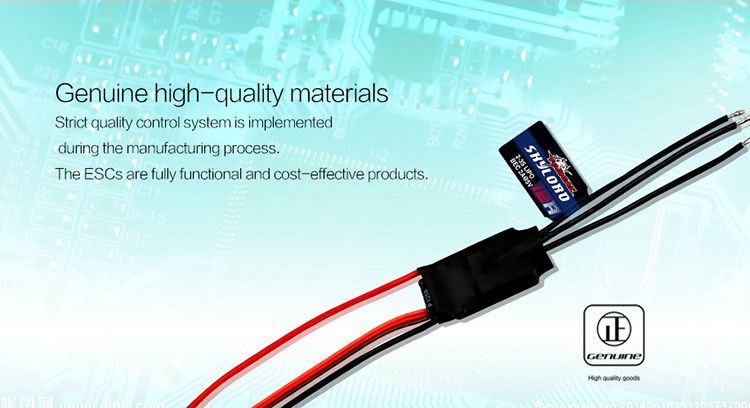

All the electronic components in ESCs are genuine original, to ensure the ESCs working with high quality and reliability.
Microprocessor in the ESC is powered by separate voltage regulator IC, with better anti-jamming capability, greatly reducing the possibility of out-of-control.
The ESCs have three start modes: Normal, Soft, and Super-soft, it can be used for both fixed-wing aircraft and helicopter.
The ESCs have full protection features such as low voltage protection, over-heat protection, over-load protection, and throttle signal loss protection, it can effectively extend the service life of the ESCs.
The ESCs support selectable timing, compatible with aircraft motor and disc-type motor.

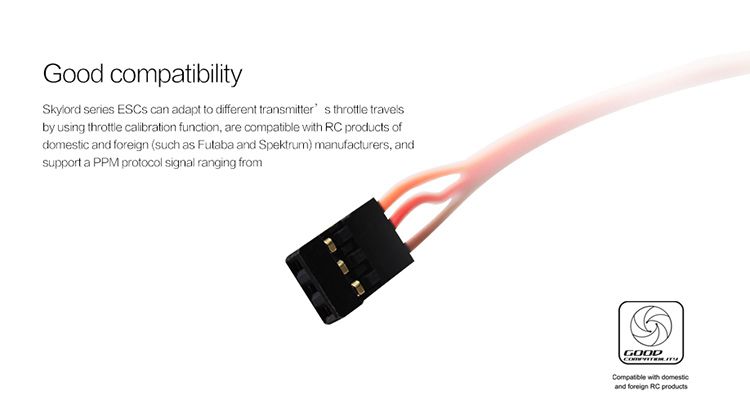

The throttle range can be configured, fully compatible with the available transmitters.

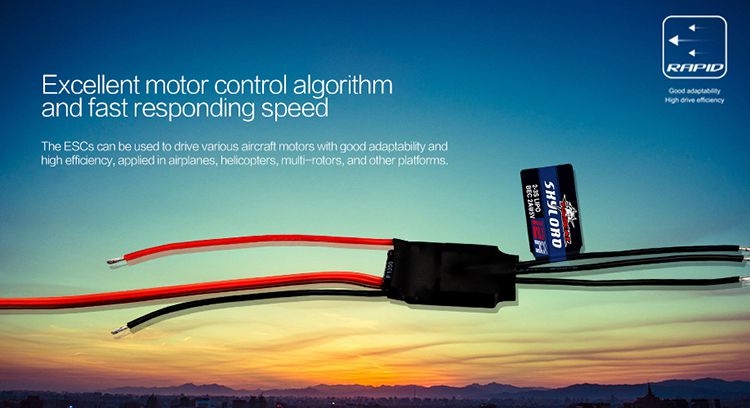

The ESCs have smooth and accurate speed control, and excellent throttle linearity.
The highest motor speed: 210000 RPM (2 poles), 70000 RPM (6 poles), 35000RPM (12 poles).
A programming card with a very small size and intuitive interface can be purchased additionally for easily programming the ESC (For details, please see the user manual of program card).

Protection Functions
Start Protection:
If the motor fails to start up within 2 seconds while the throttle stick moving up, the ESC will cut off the power output, and then try to restart the motor after 2 seconds.
Such a situation happens in the following cases:
The connection between the ESC and the motor is loose.
The propeller is blocked by other objects.
The gearbox is damaged.
Over-heat Protection:
When the temperature of the ESC is over about 110 Celsius degrees, the ESC will gradually reduce power output.
To ensure that the motor can still get power to avoid a crash, the ESC will not shut down all power output, maximum reducing to 40% of the full power.
After the temperature drops, the ESC will gradually recover to maximum power.
Low voltage Protection:
If the battery voltage is lower than the cut off threshold, the ESC will reduce power output to zero according to the pre-set cut off type.
Throttle signal loss Protection:
The ESC will gradually reduce power output if the throttle signal is lost for 1 second, further loss for 2 seconds will cause the output cut off.
If the throttle signal is recovered within 2 seconds, the throttle control will be recovered immediately.

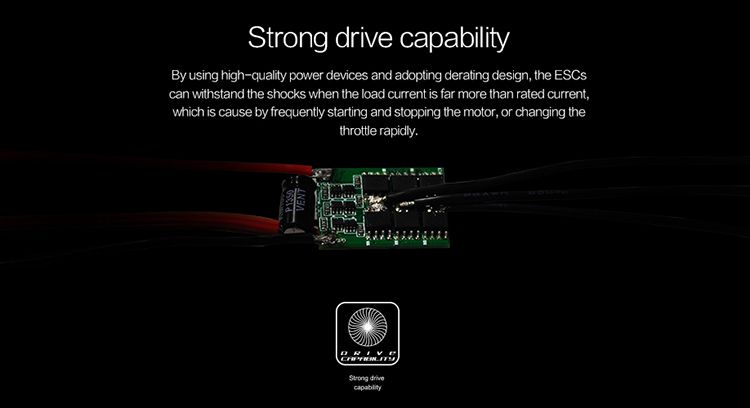

Over-load protection:
If the load of motor increases suddenly, the ESC will cut off power output and then try to restart after 2 seconds.
