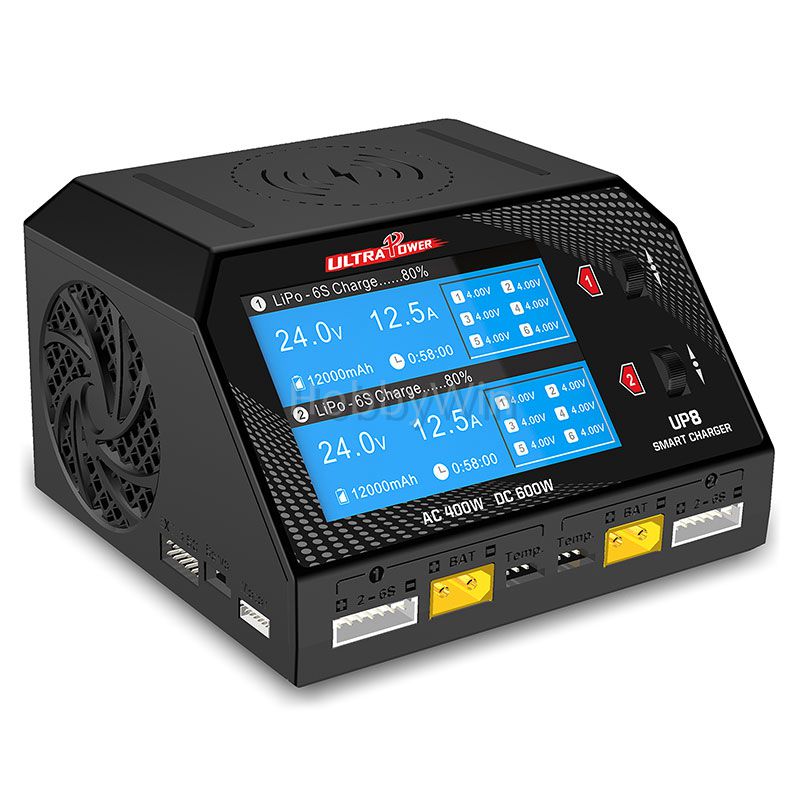

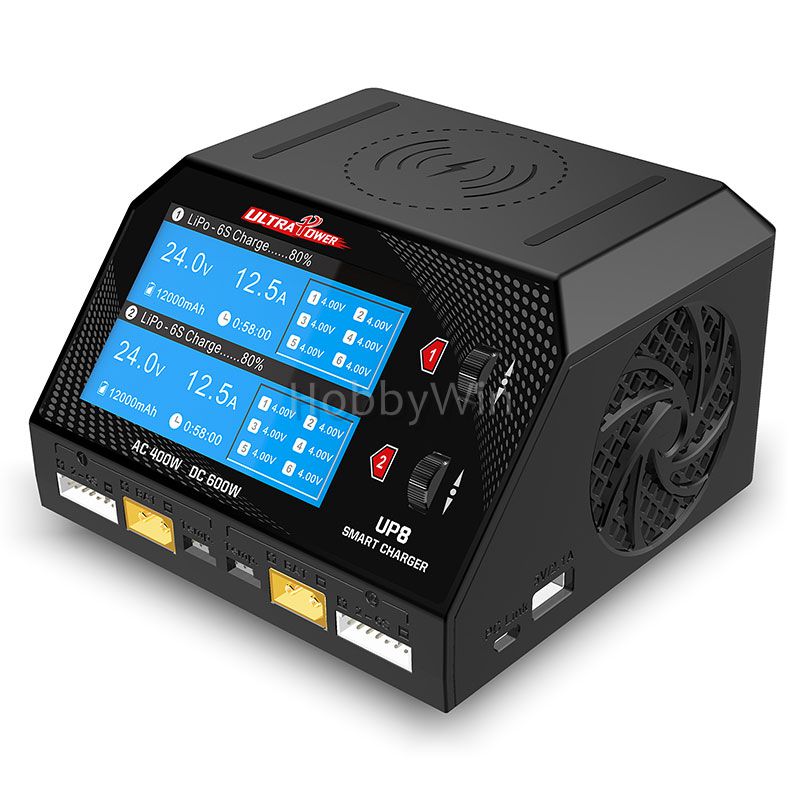

UP8 Dual Output Smart Balance Charger AC2x200W DC2x300W

  • Model: UP8
  • Shipping Weight: 1.5Kg
  • Manufactured by: Ultra Power
  • Description

UP8 Dual Output Smart Balance Charger AC2x200W DC2x300W
Made By: Ultra Power
Item No.: UP8 (Buy-It-Now)


FEATURES:
01. Dual channel output, single channel current up to 16A.
02. 3.5" LCD display, four working modes, simple control by one shuttle key.

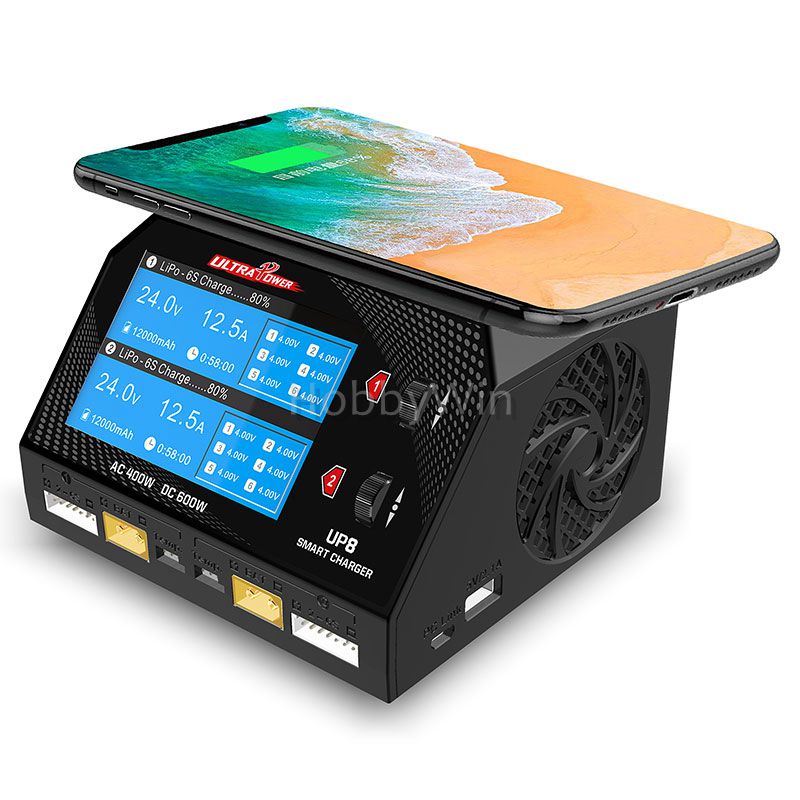

03. Independent mobile phone wireless charging function, built-in charging sensor chip.
04. Enjoy a fast 200W discharging - External discharging function.
05. Motor /Servo testing function.
06. Colorful UI display interface, clearly show the charger real-time status.


Specification
Input: AC100-240V, DC9.0-30V
Output: 0.1-30V
Charging Current: 2x 0.1-16.0A
Discharge Current:
CH1: 0.1-3.0A /0.1-15.0A (Externam discharge mode)
CH2: 0.1-3.0A
Charge Power:
AC Input: Max 2x 200W
DC Input: Max 2x 300W
Support power distribution
Wireless Charge Power: Max 10W
Discharge Power:
CH1: 8W/200W(External discharge mode)
CH2: 8W
Balance Current: Max 1000mA/cell
Support Batery Type:
LiPO/LiHV/LiFe/LiIon(1-6s)
NiMH/NiCD(1-16s)
Lead Acid 2-24V(1-12s)
Operation Temperature: 0~40 celsius degrees
Storage Temperature: -20~60 celsius degrees
LCD Screen Type: 3.5" 480x320 LCD
Dimension: 125x119x76mm
Net Weight: 780g
Q'TY: 1P
