27g Metal Gear 5 Wire Analog Servo

27g 5-wire Metal Gear Analog Servo
Made By: huayu hobby
Item No.: S0270-5W (Buy-It-Now)

Model: S0270-5W
27g metal gear analog servo
For RC Car (replace hbx servo 12030)
Weight: 27±1g (0.95 oz)

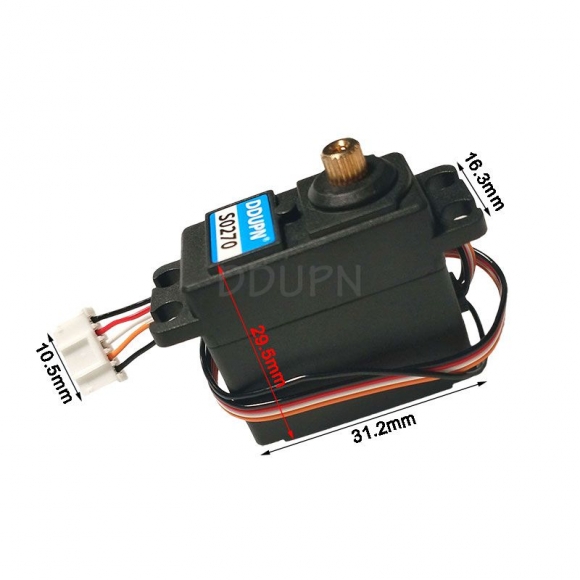

Size: 31.2*16.3*29.5mm
Control System: (+)Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0-7.4V
Operating Temperature Range: (-)10 to +50 degree C
Operating Speed at no load:
0.14sec/60 degree (6.0V)
0.12sec/60 degree (7.4V)
Stall Torque:
3.0kg.cm (41.67 oz/in) (6.0V)
3.5kg.cm (48.62 oz/in) (7.4V)
Operating Angle: 45deg.one side pulse traveling 500 usec
360 Modifiable: No
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 120mA no load operating
Current Drain (7.4V): 20mA/idle and 150mA no load operating
Stall Current: 1.1A/1.3A
Dead Band Width: 4usec
Motor Type: Iron core
Bearing Type: single ball bearing
Horn gear spline: 25T
Gear Type: Metal
Connector wire length: 180mm
Q'TY: 1piece

Important Notes:

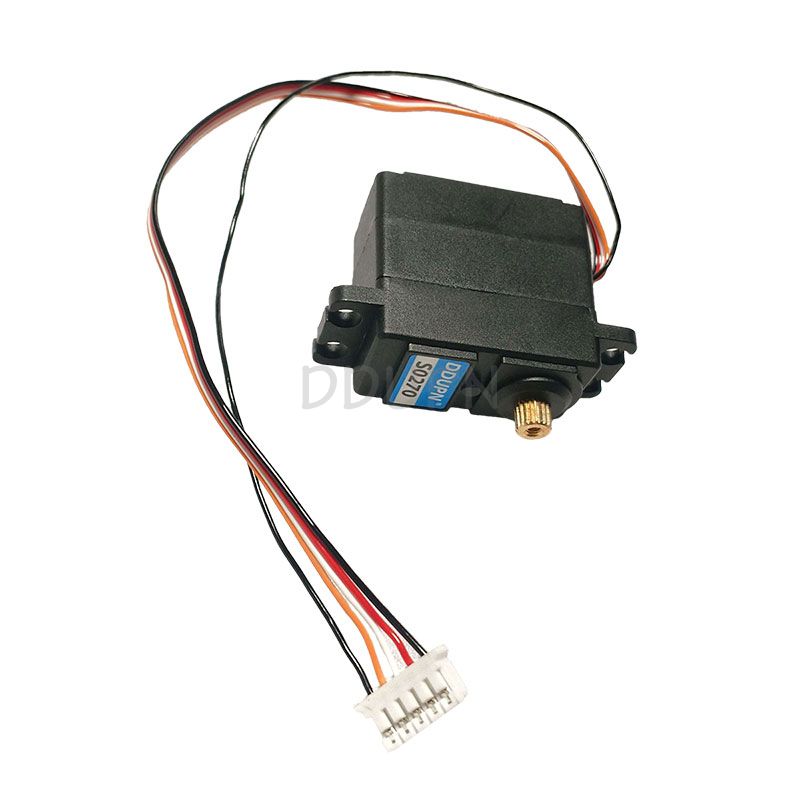

01. 5-wire plug +180mm cable.

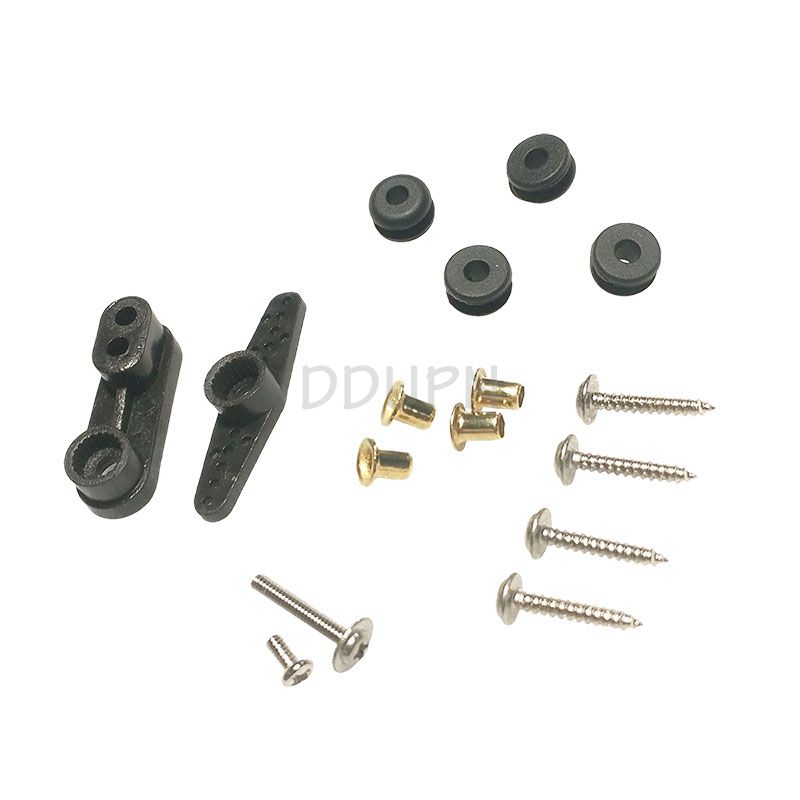

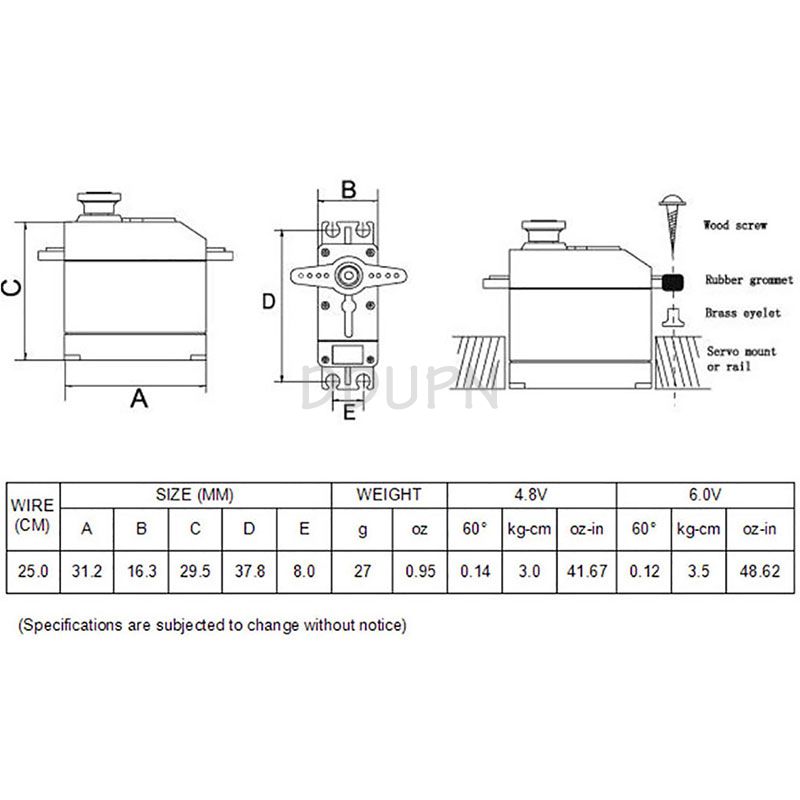

02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
