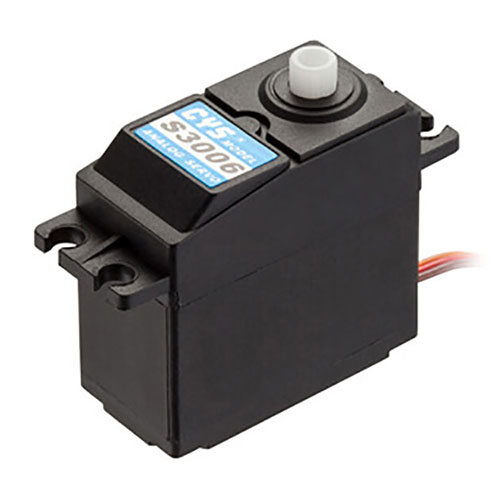

CYS MODEL S3006 Plastic Gear 6Kg Analog Servo

CYS S3006 Plastic Gear 6Kg Analog Servo
Made By: CYS MODEL
Item No.: CYS-S3006 (Buy-It-Now)

6Kg Plastic Gear Analog Servo
Size: 40.8*20.1*38mm
Weight: 40g (1.41 oz)
Control System: (+)Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4V
Operating Temperature Range: -10 ~ +50 Celsius degree
No-load Speed:
0.14sec/60 degree -(6.0V)
0.12sec/60 degree -(7.4V)
Stall Torque:
5.5kg.cm (76.40 oz/in) -(6.0V)
6.0kg.cm (83.34 oz/in) -(7.4V)
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 200mA no load operating
Current Drain (7.4V): 20mA/idle and 300mA no load operating
Stall Current: 1.5A/1.8A
Dead Band Width: 4usec
Motor Type: Iron Motor
Bearing Type: Dual Ball Bearing *2
Horn gear spline: 25T
Gear Type: Plastic
Connector Wire Length: 300 ±5mm
Wire info: Brown/Black = Negative; Red = Positive; Orange/White = Signal
Connector Type: JR plug
Q'TY: 1P

Suitable For
RC Buggy /Car /Truck /Truggy /SpeedBoat

Important Notes:
01. JR connector, 300mm wire.

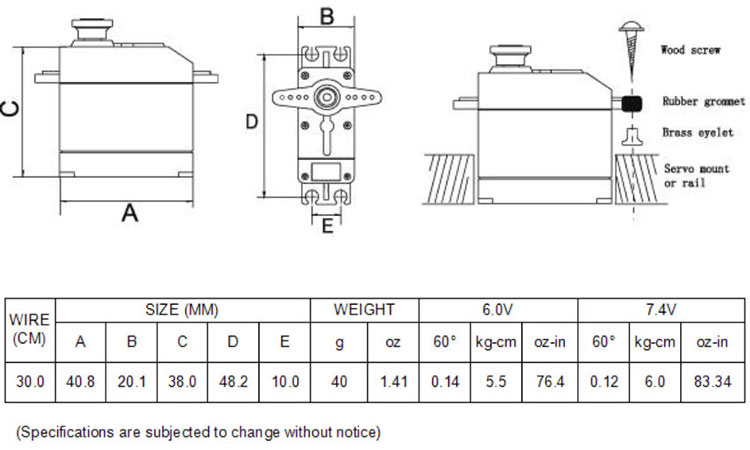

02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
