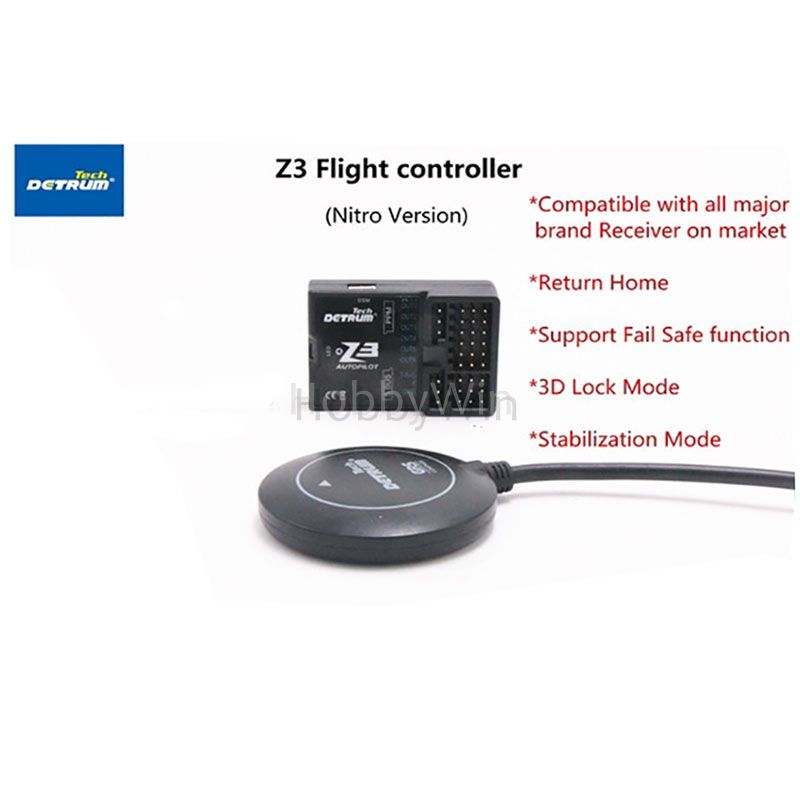

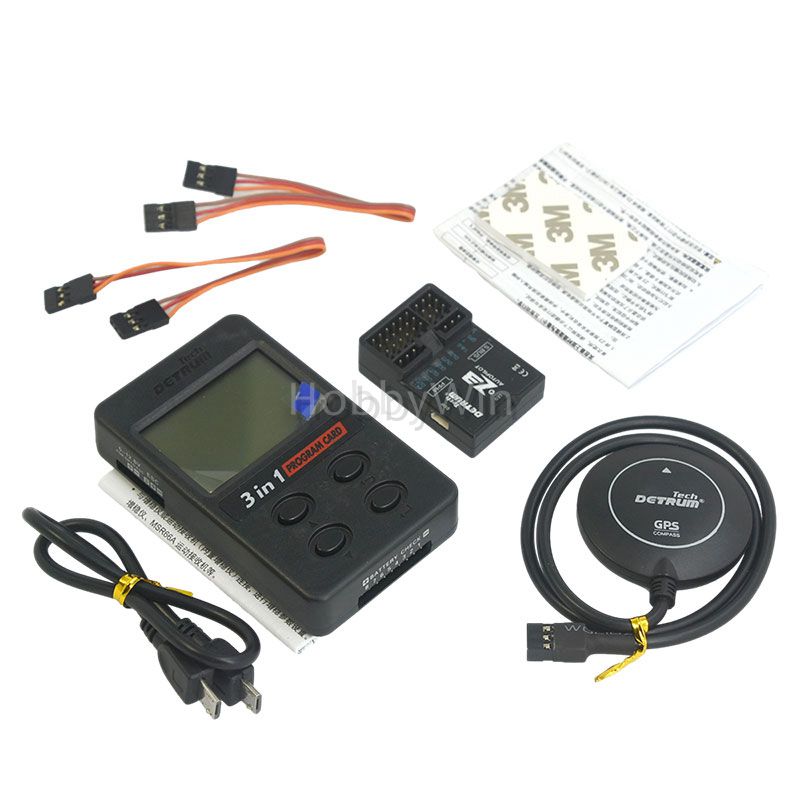

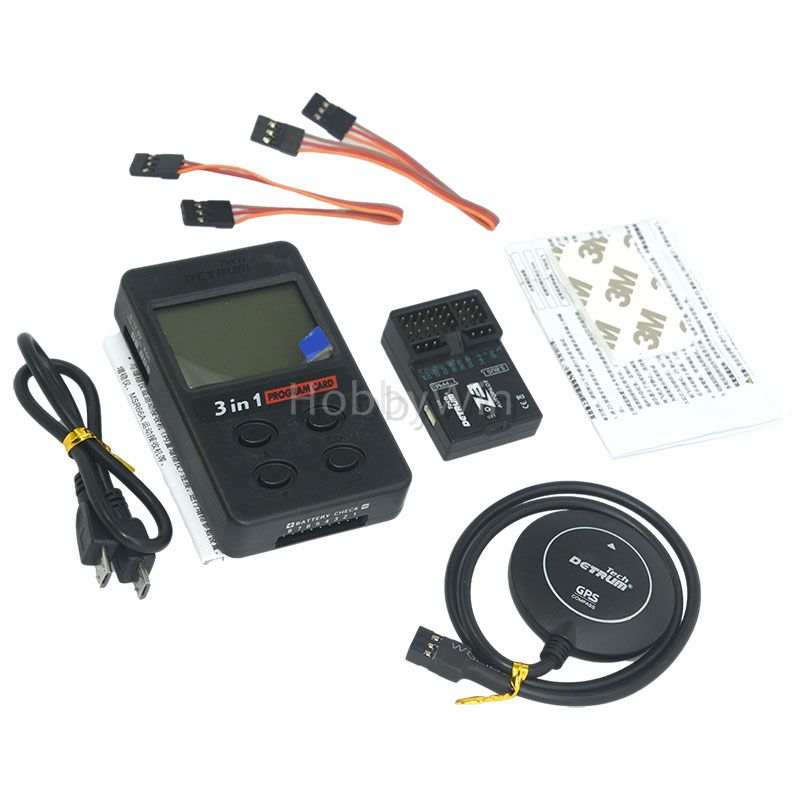

Dynam Detrum Z3 Flight Controller Nitro Version (GPS & 3 in1 Program Card Combo)
Made By: Dynam
Item No.: DTM-1010 (Buy-It-Now)

FEATURES:
01. Return Home
Adding path control based on the auto-recovery mode, it allows the airplane to automatically plan the path, lead the airplane back to the starting point.
Height is controllable during the return flight. You can exit the return mode at any time by waving the return switch, supporting one-button return and signal loss return.
02. Main Control IC
32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset
03. Control Algorithm
Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, fly wing, V-tail airplanes, and 3D planes.
04. Flight Mode
Four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance).
You can switch between different modes by the toggle switch.
05. Adjusting the Gain
Set the gain and other programmable items with 3in1 program card.
06. Compatibility
Support PPM, S.BUS, S.UBS2, DSM2 and DSMX receivers

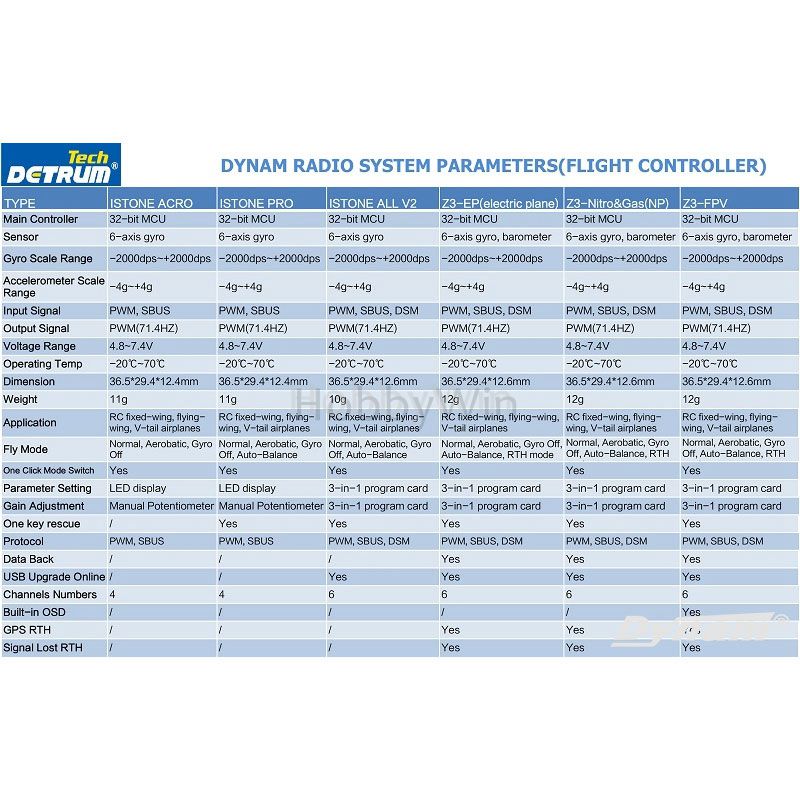

Specifications
Main Controller: 32-bit ARM core processor
Sensor: 6-axis gyro, Barometric Pressure, GPS
Gyro Scale Range: -2000dps ~ +2000dps
Accelerometer Scale Range: -4g ~ +4g
Input Signal: PWM, Futaba S.BUS, DSM
Input Channel: 6 (four for PWM, one for DSM, one for S.BUS)
Output Signal: PWM (71.4Hz) 6 channels
Input Voltage: 4.8~7.4V
Operating Temp: -20~70℃
Size: 36.5*29.4*12.6mm
Weight: 12g
