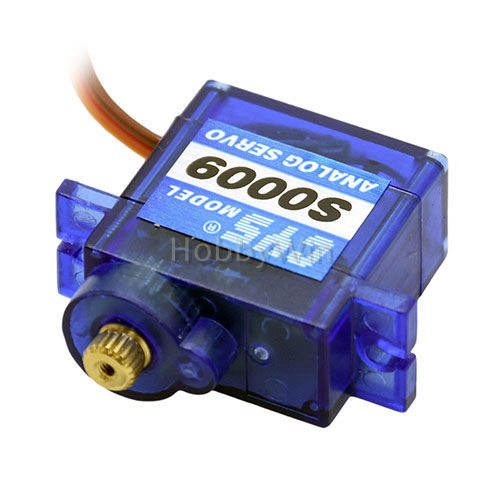

CYS S0009A Metal Gear 10g Analog Servo

CYS S0009A Metal Gear 10g Analog Servo
Made By: CYS MODEL
Item No.: CYS-S0009A (Buy-It-Now)

10g Metal Gear Analog Servo

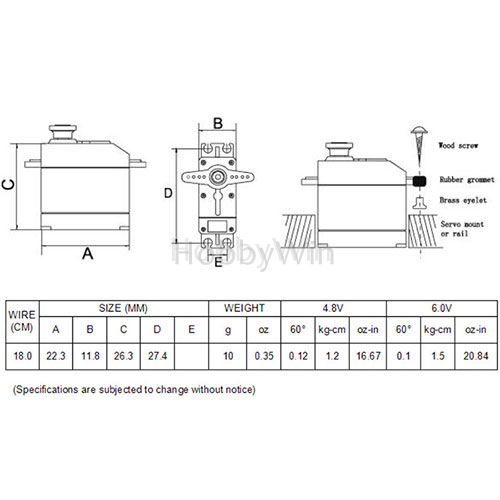

Size: 22.3*11.8*26.3mm
Weight: 10g (0.35 oz)
Wire Length: 18cm
Plug Type: JR
Operating Voltage: 4.8-6.0V
Operating Speed at no load:
(4.8V) 0.12sec/60 degree
(6.0V) 0.10sec/60 degree
Stall Torque:
(4.8V) 1.2kg.cm (16.67 oz/in)
(6.0V) 1.5kg.cm (20.84 oz/in)
Q'TY: 2PCS
Suitable For
450 class RC Helicopter
1/18 scale RC Car Truck
Micro size RC Airplane

Important Notes:
01. JR connector, 180mm wire.

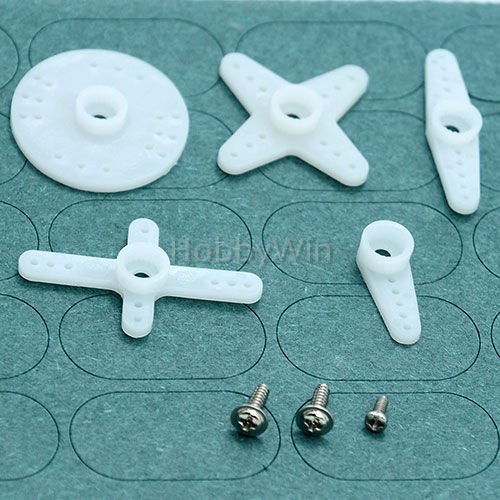

02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
