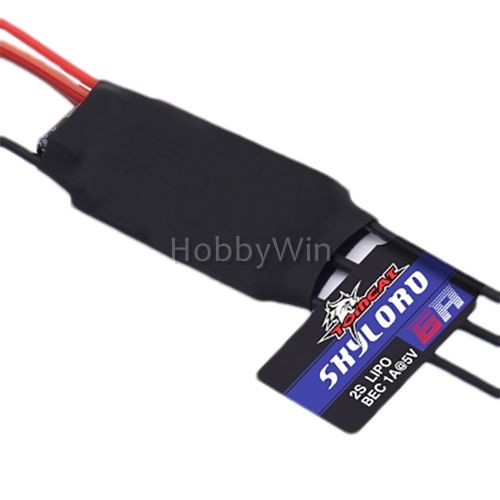

Dynam Skylord ESC 6A Linear BEC 5V 1A

Dynam Skylord ESC 6A Linear BEC 5V 1A
Made By: Dynam
Item No.: SKL006 (Buy-It-Now)

MPN: Skylord-6A
Constant Current: 6A
Max Burst Current: 8A/10s
BEC Output: Linear 5V/1A
BEC Output Capacity:
3 servos with 2S LiPO
Battery Suggestion:  2s LiPO /5-9s NiMH or NiCD
Size: 38*18*7mm
Weight: 10g
Q'TY: 1P

FEATURES:
01. Strong Drive Capability.
Skylord series ESCs have strong drive capability, provide the motor with rapid startup speed and large torque, and are able to operate smoothly with heavy load. Compared with similar products from other manufacturers, the driving force is increased by about 10% or more.
02. High Compatibility.
Skylord series ESCs have three start modes (normal, soft and super-soft) which are suitable for airplanes and helicopters, can support different timing and are compatible with aircraft motors and disc-type motors. You can set the throttle range, make the ESCs fully compatible with various transmitters.
03. Multiple Safety Protections.
It has multiple safety protection function, such as low voltage protection, overheating protection, over-load protection, throttle signal loss protection, etc. which can effectively extend the ESC's service life. Microprocessor in the ESC is powered by independent DC regulator, has better anti-interference performance, greatly reduce the possibility of out of control.
04. Convenient Programming.
You can use a 3-in-1 LCD programming card with a very small size to program the Skylord series ESCs. Compared with programming the ESC with a transmitter, the LCD programming card is easier to use. In addition, the LCD programming card can also be used for programming the stabilizer and measuring the voltage for LiPo batery.
05. Excellent motor control algorithm and fast responding speed.
The ESCs can be used to drive various aircraft motors with good adaptability and high efficiency, applied in airplanes, helicopters, multi-rotors, and other platforms.

Protection Functions
Start Protection:
If the motor fails to start up within 2 seconds while the throttle stick moving up, the ESC will cut off the power output, and then try to restart the motor after 2 seconds.
Such a situation happens in the following cases:
The connection between the ESC and the motor is loose.
The propeller is blocked by other objects.
The gearbox is damaged.
Over-heat Protection:
When the temperature of the ESC is over about 110 Celsius degrees, the ESC will gradually reduce power output.
To ensure that the motor can still get power to avoid a crash, the ESC will not shut down all power output, maximum reducing to 40% of the full power.
After the temperature drops, the ESC will gradually recover to maximum power.
Low voltage Protection:
If the battery voltage is lower than the cut off threshold, the ESC will reduce power output to zero according to the pre-set cut off type.
Throttle signal loss Protection:
The ESC will gradually reduce power output if the throttle signal is lost for 1 second, further loss for 2 seconds will cause the output cut off.
If the throttle signal is recovered within 2 seconds, the throttle control will be recovered immediately.
Over-load protection:
If the load of motor increases suddenly, the ESC will cut off power output and then try to restart after 2 seconds.
